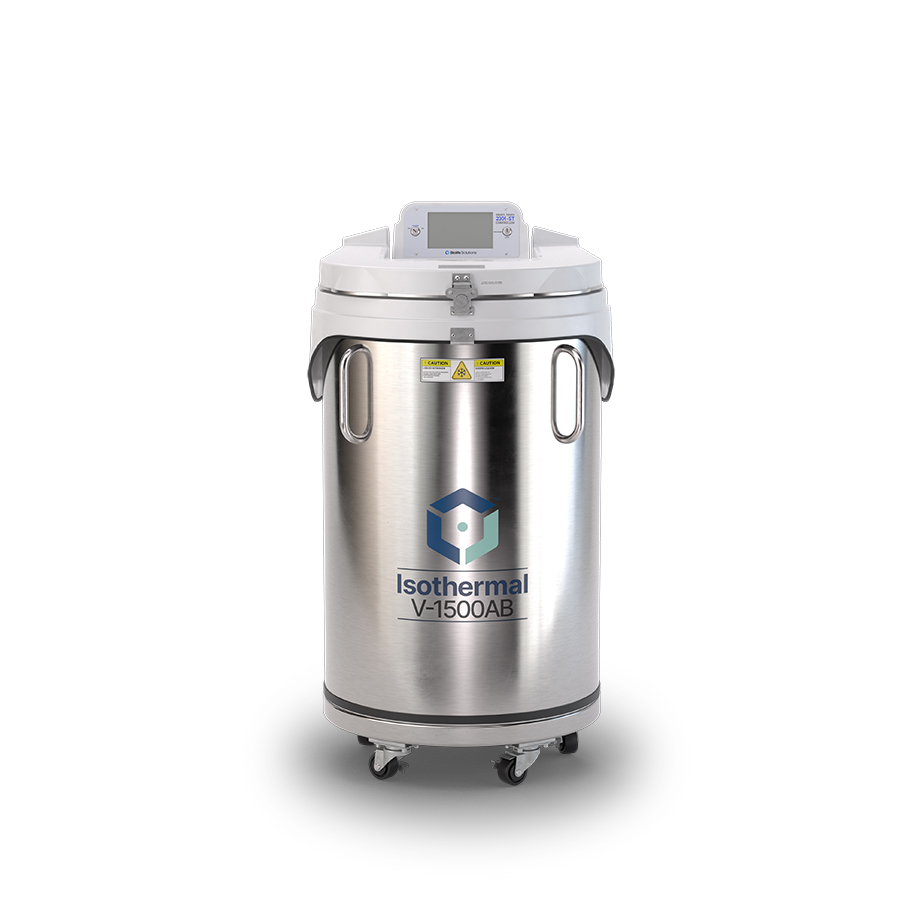

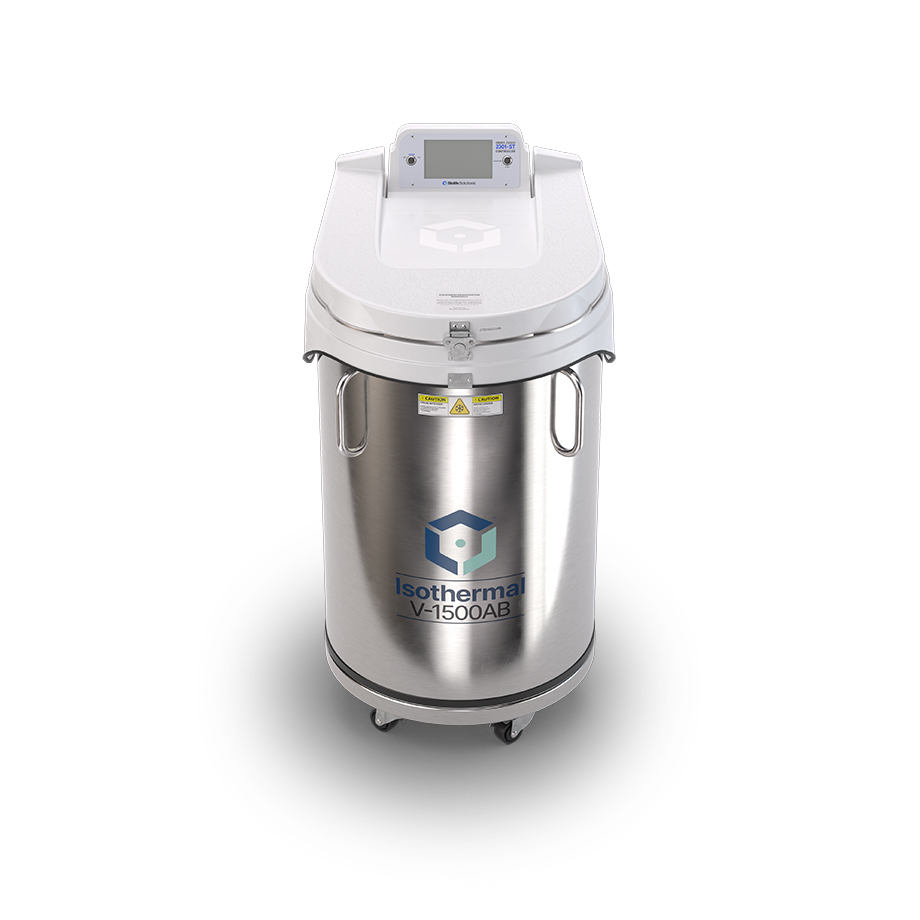

V-1500AB-ST Isothermal LN₂ Freezer
The V-1500AB-ST Isothermal LN₂ Freezer provides secure cryogenic dry-vapour storage in the -190°C range without direct liquid nitrogen contact. With patented liquid nitrogen jacket technology, it offers uniform temperature performance, improved sample safety and reliable long-term cryopreservation for valuable biological materials.
›
Request a Quote
V-1500AB-ST Isothermal LN₂ Freezer
Patented isothermal LN₂ jacket technology
CBS Isothermal Freezers use a patented liquid nitrogen jacket to deliver uniform storage temperatures in the -190°C range. Instead of storing samples directly in liquid nitrogen, LN₂ is contained in the freezer wall, creating a dry storage space that helps protect samples and users.
No liquid nitrogen contact
The dry-vapour design helps eliminate risks associated with traditional liquid phase storage, including cross-contamination through liquid nitrogen, vial shrinkage and potential exposure of users to LN₂ splashing when retrieving racks and samples.
Superior sample protection
The isothermal design supports excellent temperature uniformity from top to bottom, allowing the full storage capacity to be used with confidence. This makes the V-1500AB-ST suitable for high-value samples requiring stable long-term cryogenic preservation.
Rack configurations
Organizing the space in your freezer can help make laboratory workflows more efficient. Effective sample management can result in both cost and time savings while improving accessibility and organisation within the freezer.
By choosing the right rack configurations, not only can operational efficiency be increased, but the risk of sample degradation caused by exposure to ambient temperatures can also be significantly reduced.
This is especially important when storing valuable stem cells, cord blood, bone marrow or other sensitive cell and tissue samples that require reliable cryogenic preservation.

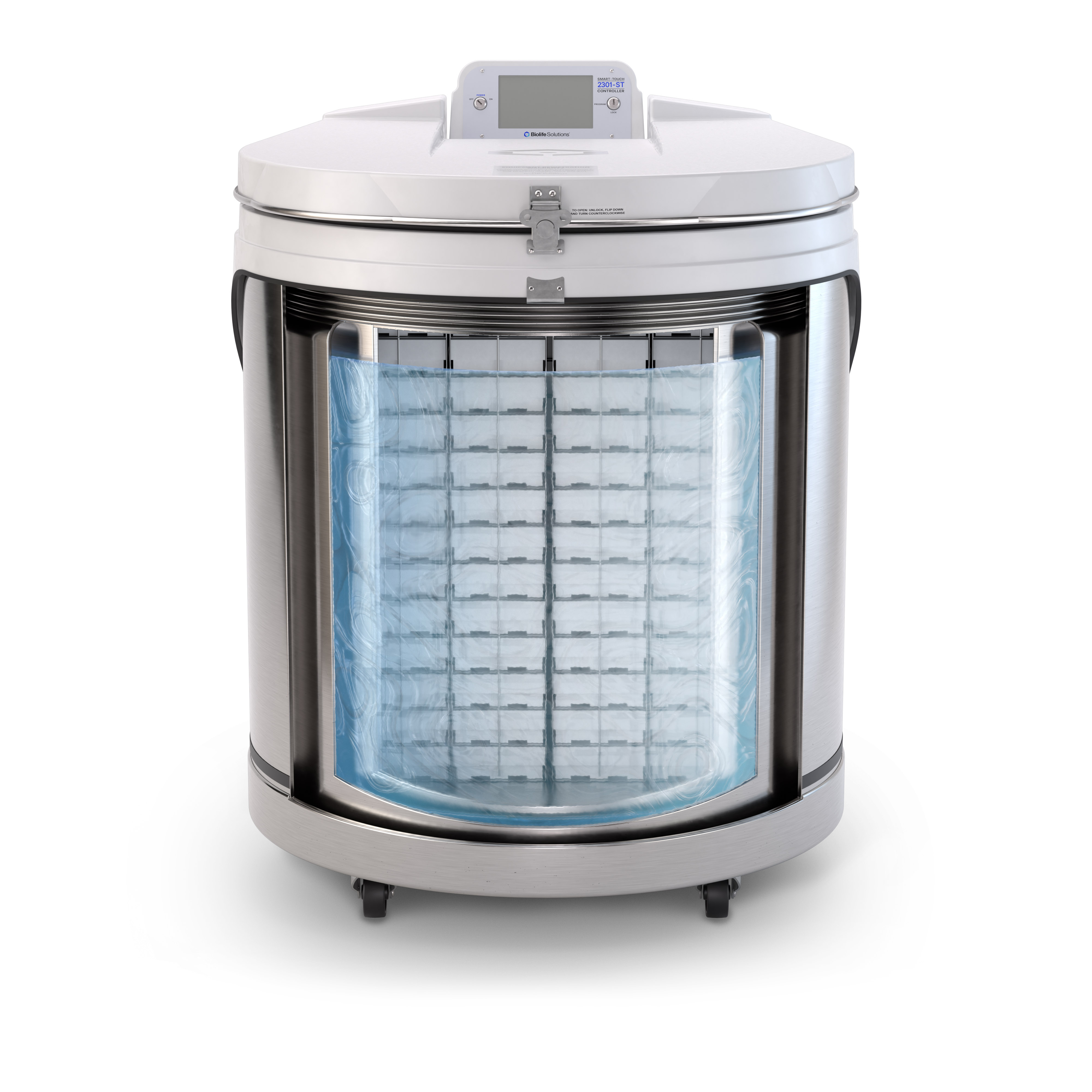

Rack configurations for efficient cryogenic sample management
Key benefits
Dry cryogenic storage
Samples are stored in vapour phase without direct liquid nitrogen contact.
Uniform -190°C range
Patented jacket technology supports stable, uniform cryogenic temperatures.
Improved user safety
Reduced risk of liquid nitrogen splashing when accessing racks and samples.
Automatic operation and monitoring
Isothermal freezers feature automatic fill and monitoring functionality to control LN₂ supply and support reliable daily operation. Monitoring features can include temperature display, alarms, reporting and integration options for laboratory workflows.
Technical highlights
Liquid nitrogen capacity: 30 litres
Static evaporation rate: 5 litres/day
Static holding time: 6 days
Maximum 2 ml vial capacity: 9,100 vials
Maximum 50 ml blood bag capacity: 434 bags
External dimensions: 676 x 1005 x 1211 mm
Usable interior diameter: 534 mm
Usable interior height: 736 mm
