PHC Europe, a Member of PHC Group PRESERVATION Ultra Low Freezers VIP ECO ULT Freezers (-86°C) MDF-DU502VH-PE

VIP ECO ULT Freezers (-86°C)

MDF-DU502VH-PE VIP ECO ULT Freezer

Effective capacity
528L
Cooling Performance
-86℃

Features

Cost-saving and environmentally friendly sample storage within an optimal footprint

VIP ECO ULT Freezer MDF-DU502VH

Cost-saving and environmentally friendly sample storage within an optimal footprint

The MDF-DU502VH VIP ECO -86°C ultra low temperature freezer provides maximum sample storage capacity within an optimum footprint combined with natural refrigerants to minimise energy consumption, reduce environmental impact and save money.

VIP ECO ULT Freezer MDF-DU502VH
MDF-DU502VH VIP ECO ULT Freezer

Efficient Refrigeration

Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to reduced power consumption and energy costs.

Inverter Technology

The MDF-DU502VH VIP ECO ULT Freezer contains Inverter Compressors that maximise cooling performance under different conditions, and contribute to reducing the energy consumption of the freezer.

Intelligent Interface

The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC simple and convenient.

Efficient refrigeration and intelligent interface
Efficient cooling and smart usability

Key benefits for modern laboratories

Environmentally Friendly

Ideal for laboratories looking to reduce their carbon footprint and environmental impact to comply with sustainability policies.

Uniform Sample Storage

Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.

Easy Data Monitoring

Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

Advanced technology for efficient performance

Inverter Compressors

While conventional freezers use single speed compressors which cycle on and off, the MDF-DU502VH VIP ECO ULT Freezer contains inverter compressors that can run at different speeds to maximise cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure the most efficient energy use and reduced heat output.

Efficient & Flexible Sample Storage

The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity. Multiple shelf configurations allow a variety of storage options. Organize your samples by transferring your current inventory racks.

Innovative Cabinet Design

The enhanced cabinet design with chamfered edges reduces footprint for use in multi freezer laboratories.

Inverter compressors and flexible sample storage
Energy-efficient design and storage flexibility

Related VIP ECO ULT Freezer models

PHC Europe B.V. also offers the MDF-DU702VH-PE which has a capacity of 728 litres and MDF-DU901VHL-PE which has a capacity of 845 litres.

Product videos

Cryo Glove

Combining the Cryo glove 400 with our ULT freezer is an essential practice that prioritizes safety, sample integrity, precision, and adherence to industry standards. It's a small investment that yields significant benefits for both you and your research or laboratory work.

› Request a Quote

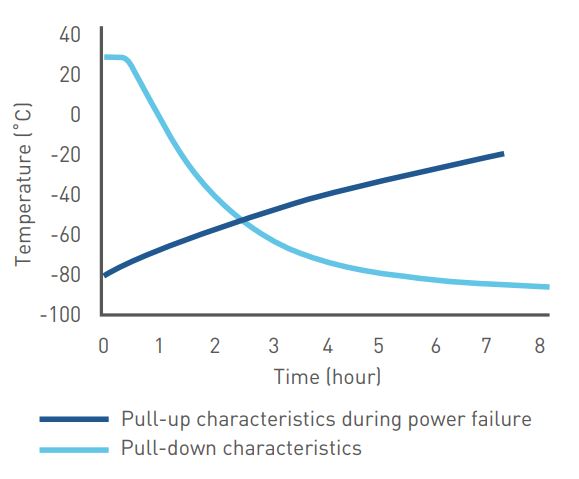

Performance

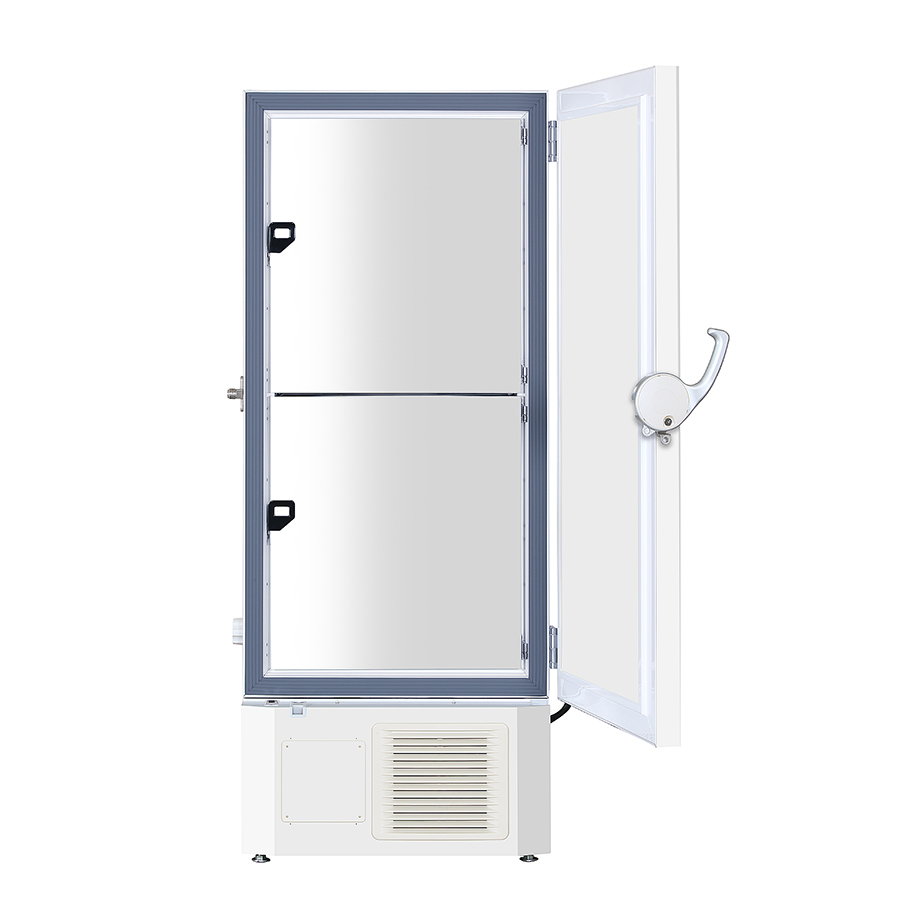

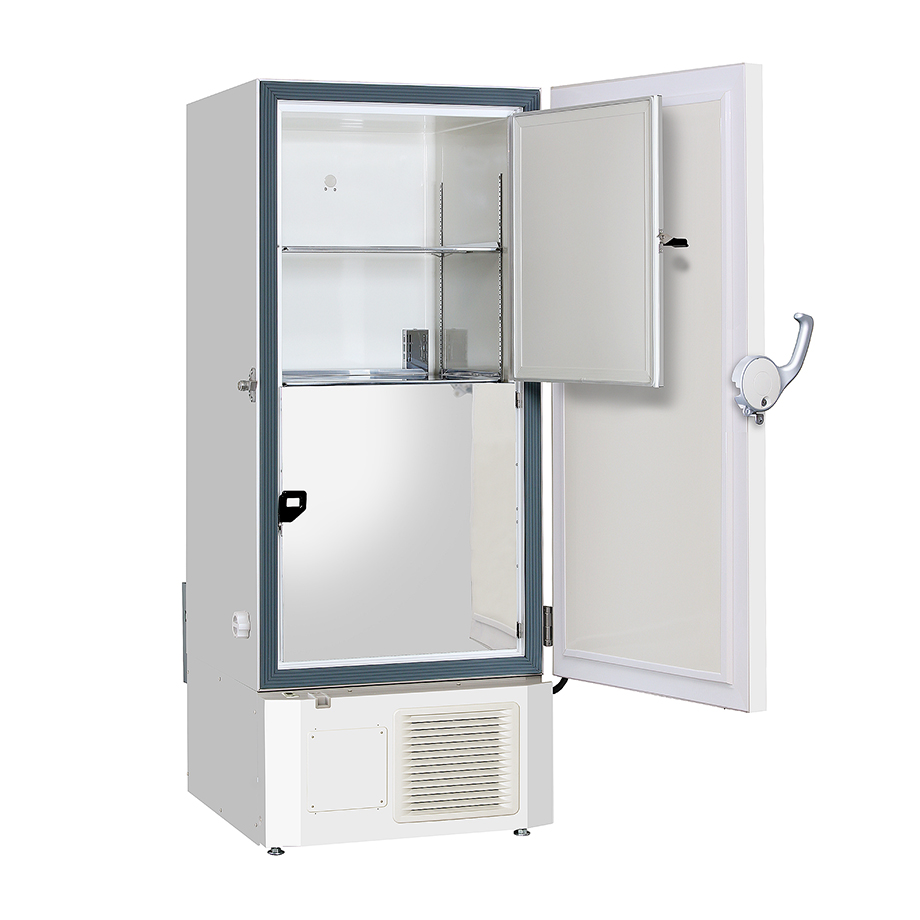

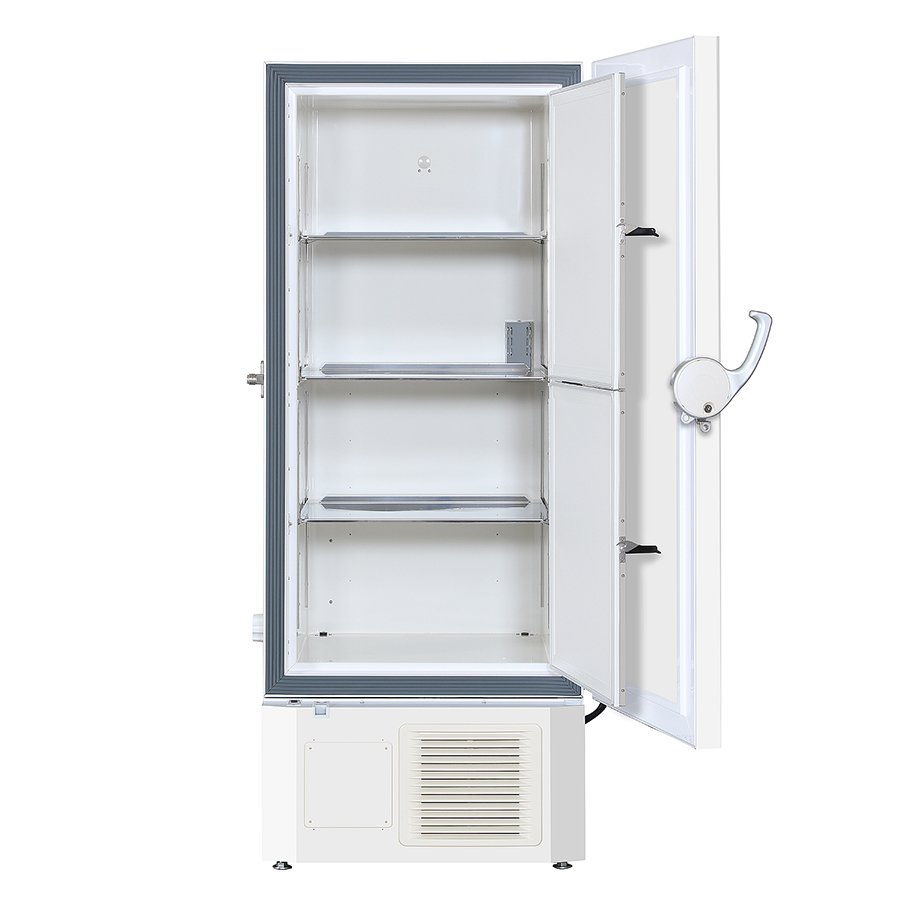

Product Photos

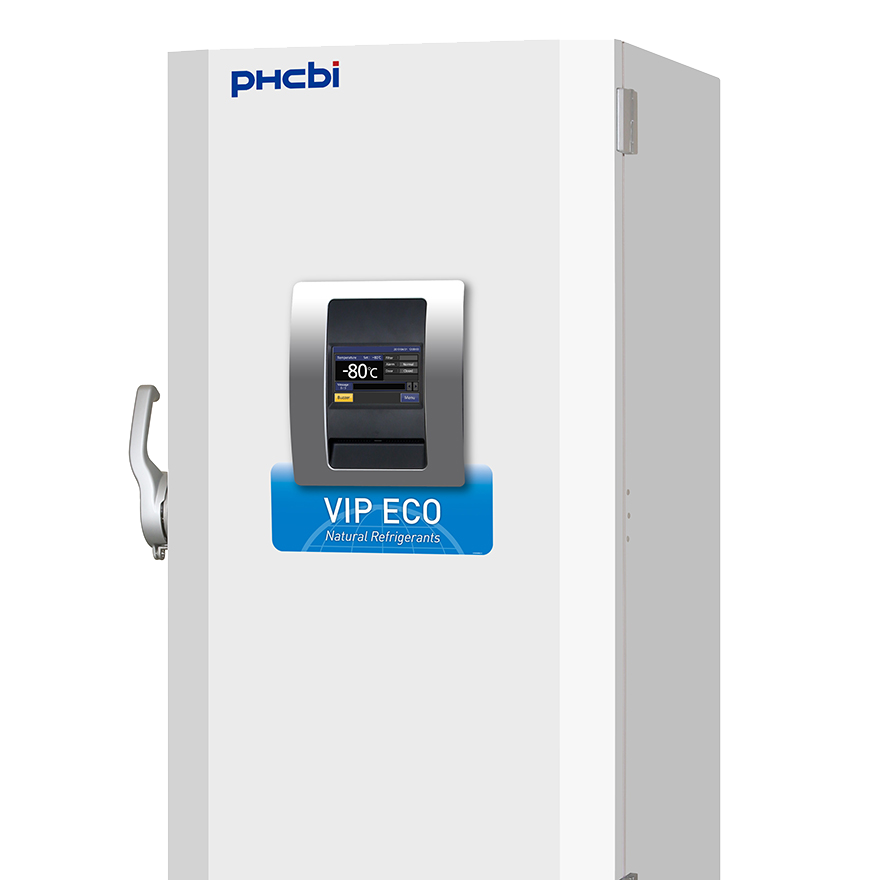

MDF-DU502VH Facing left

Specifications

External Dimensions (W x D x H) 790 x 882 x 1993 mm
Internal Dimensions (W x D x H) 630 x 600 x 1400 mm
Volume 528 litres
Net Weight 246 kg
Capacity (Aluminium Racks 2” Boxes) 384 (2” boxes)
Capacity (Stainless Steel Racks 2” Boxe) 384 (2” boxes)
Cooling Performance -86 °C
Temperature Setting Range -40 to -90 °C
Temperature Control Range -40 to -86 °C
Controller Microprocessor, non-volatile memory
Display LCD Touch Screen
Temperature Sensor Pt-1000
Refrigeration System Cascade
Compressors 2 x 750 W
Refrigerant HC
Insulation Material PUF / VIP Plus
Insulation Thickness 80 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 1
Outer Door Lock Y
Inner Doors/Lid 2 pieces (insulated)
Shelves 3
Max. Load - Per Shelf 50 kg
Max. Load - Total 415 kg
Vacuum Release Port 2 (1 automatic, 1 manual)
Access Port 3
Access Port Position Back x 1, Bottom x 2
Access Port Diameter 17
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter V-B
Door Open V-B
Power Supply 230 V
Frequency 50 Hz
Noise Level < 52 dB [A]

Accessories

Small inner door kit MDF-5ID (Max 2)
Temperature recorders
- Circular type MTR-G85
- Continuous strip type MTR-85H
- Recorder housing (if required) MDF-S3085
Liquid CO2 Back-up MDF-UB7

Communication Interface

Modbus MTR-MODB1-PW
Analog MTR-420MA-PW

Dimensions

MDF-DU502VH Dimensions

Downloads
