PHC Europe, a Member of PHC Group Incubation IncuSafe CO2 Incubators MCO-170AC-PE

CO2 Incubators

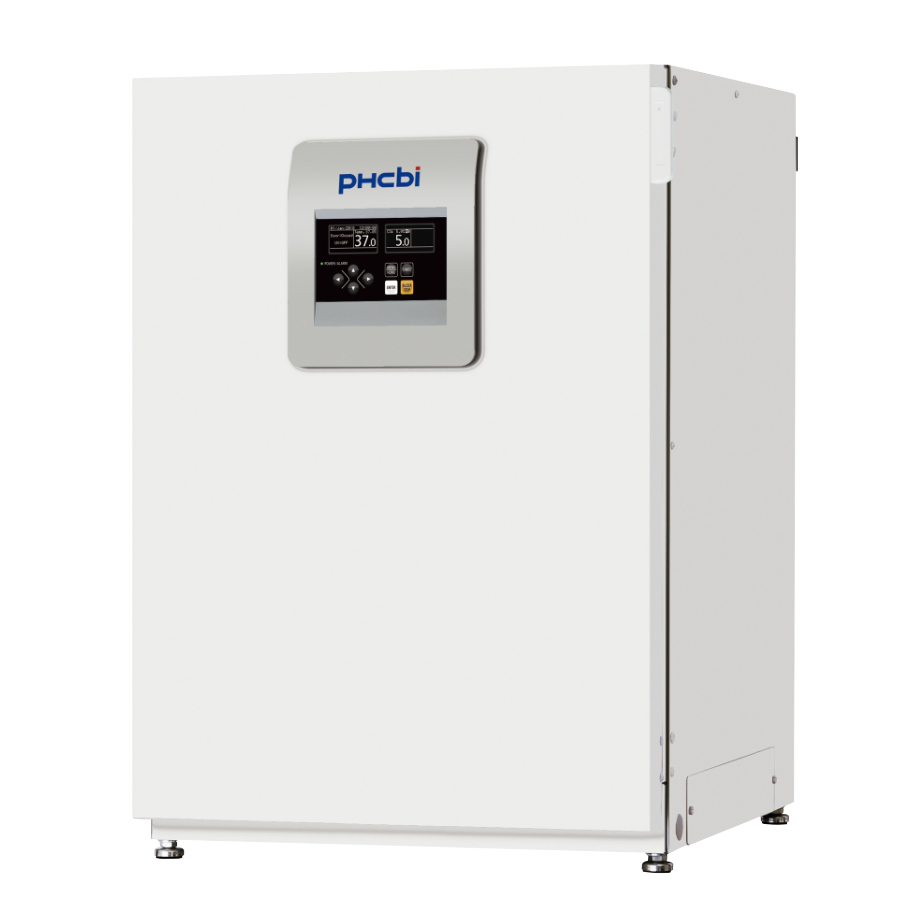

MCO-170AC-PE IncuSafe CO2 Incubator

Effective capacity
165L
Temperature range
+5℃ above ambient to 50℃

Features

The high-performance solution for mainstream applications

MCO-170AC-PE CO₂ Incubator

The IncuSafe MCO-170AC CO₂ Incubator was developed utilizing advanced technology for unprecedented temperature and CO₂ control. Chamber conditions are accurately maintained by the Microprocessor P.I.D controller.

The DHA Direct Heat & Air Jacket was designed to surpass the performance of the traditional water jacket and eliminates the inconveniences of using water. Start-up is simple and easy with the automatic set-up function.

› Get in touch
MCO-170AC-PE CO2 Incubator
MCO-170AC-PE CO₂ Incubator

Copper-enriched Stainless Steel Kills Mycoplasma

PHCbi is proud to announce that inCu-saFe, the copper-enriched stainless steel used in the interior of its CO₂ and O₂/CO₂ incubators, kills mycoplasma.

Mycoplasma is one of the most common causes of contamination found in cell culture and the source can often be traced back to contaminated laboratory apparatus. The inCu-saFe walls and shelves inside IncuSafe CO₂ and O₂/CO₂ Incubators eliminate mycoplasma and significantly reduce the risk of contamination without emptying the incubator.

Benefits

Preventive Contamination Control

Helps reduce contamination risk during routine cell culture workflows.

Ergonomic Design

Designed for practical daily use and easy access in laboratory environments.

Improved Temperature Stability

The D.H.A. Direct Heat & Air Jacket System supports stable and uniform chamber conditions.

Features

  • Automatic CO₂ Cylinder Switchover System optional
  • Ergonomic Design
  • TC Sensor System
  • Double stacking
  • Single chamber
  • Active Background Contamination Control

Advanced incubation technology

  • Patented Direct Heat and Air Jacket Heating System
  • PHCbi inCu-saFe copper-alloy stainless interior, shelves and plenum
  • Field-reversible door
  • Automatic Gas Cylinder Switchover System optional

Videos

› Request a Quote

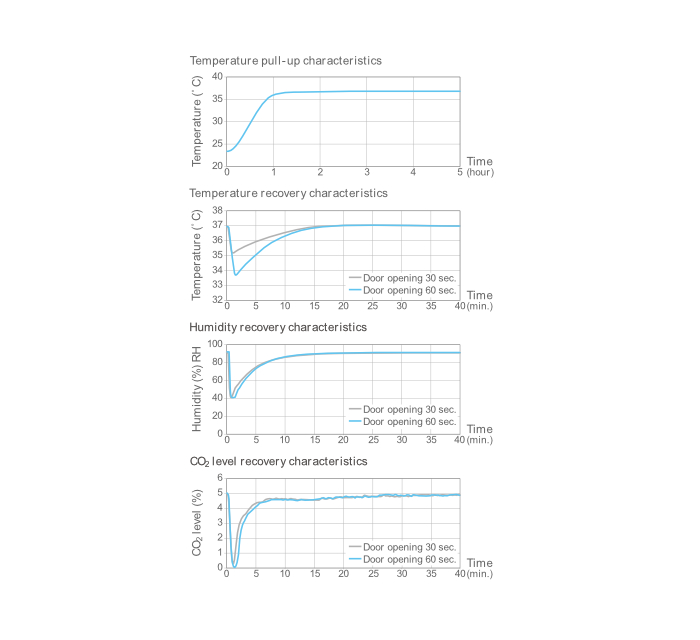

Performance

Product Photos

Specifications

External Dimensions (W x D x H) 620 x 730 x 905 mm
Internal Dimensions (W x D x H) 490 x 523 x 665 mm
Volume 165 liters
Net Weight 80 kg
Temperature Control Range & Fluctuation AT +5 ~ +50, ±0.1 °C
Temperature Uniformity ±0.25 °C
CO2 Control Range & Fluctuation 0 ~ 20, ±0.15 %
O2 Control Range & Fluctuation -
Humidity Level & Fluctuation 95, ±5 %RH
Sterilisation Method -
Temperature Sensor Thermistor
CO2 Sensor Thermal conductivity
O2 Sensor -

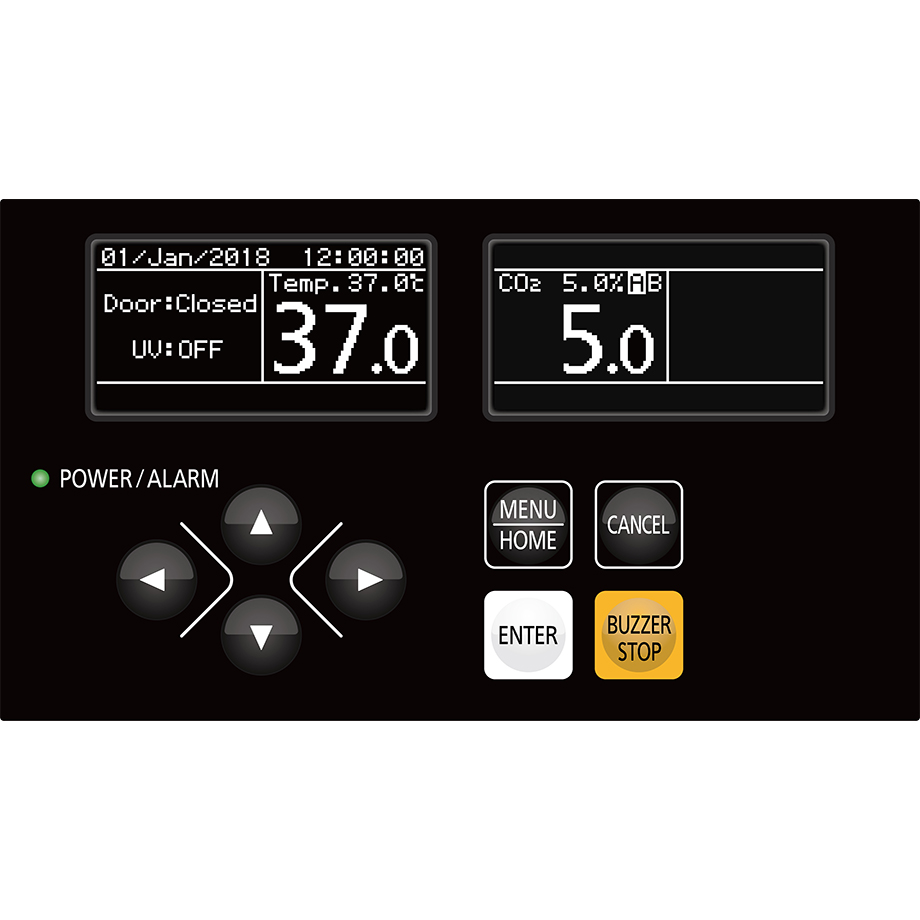

Display
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Styrene AcryloNitrile copolymer
Heating Method Direct Heat & Air Jacket System
Outer Doors 1
Outer Door Lock -
Field Reversible Door Included
Inner Doors 1 (tempered glass)
Shelves
Shelf Dimensions (W x D x H) 470 x 450 x 12 mm
Max. Load Per Shelf 7 kg
Max. Shelf Capacity 10
Access Port 1
Access Port Position Rear Upper Left
Access Port Diameter 30
Power Failure R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Out of O2 Setting -
Door Open V-B
Power Supply 230 V
Frequency Local
Noise Level 29 dB

Accessories

Options
Safe Cell UV system MCO-170UVS-PE
H2O2 Decontamination board MCO-170HB-PE
Electric door lock with password MCO-170EL-PW
H2O2 vapour generator MCO-HP-PW
H2O2 reagent MCO-H2O2-PE
Double stacking bracket MCO-170PS-PW
Stacking plate MCO-170SB-PW
CO2 gas pressure regulator MCO-100L-PW
Automatic CO2 cylinder changeover system MCO-21GCP-PW
Semi-automatic one point gas calibration kit MCO-SG-PW
InCu saFe shelf MCO-170ST-PW
InCu saFe half tray system MCO-25ST-PW
Roller base MCO-170RB-PW
Optional communication systems
Ethernet interface (LAN) MTR-L03-PW
Digital interface (RS232C/RS485) MTR-480-PW
Analogue interface (4-20mA) MCO-420MA-PW

Communication Interface

Modbus MTR-MODB1-PW
Analog MTR-420MA-PW

Dimensions

Downloads
