Interface board

MTR-480

MTR-480 is the communications Interface board required to connect the LabSVIFT Transmitter to Gen2 equipment.

JP|EN

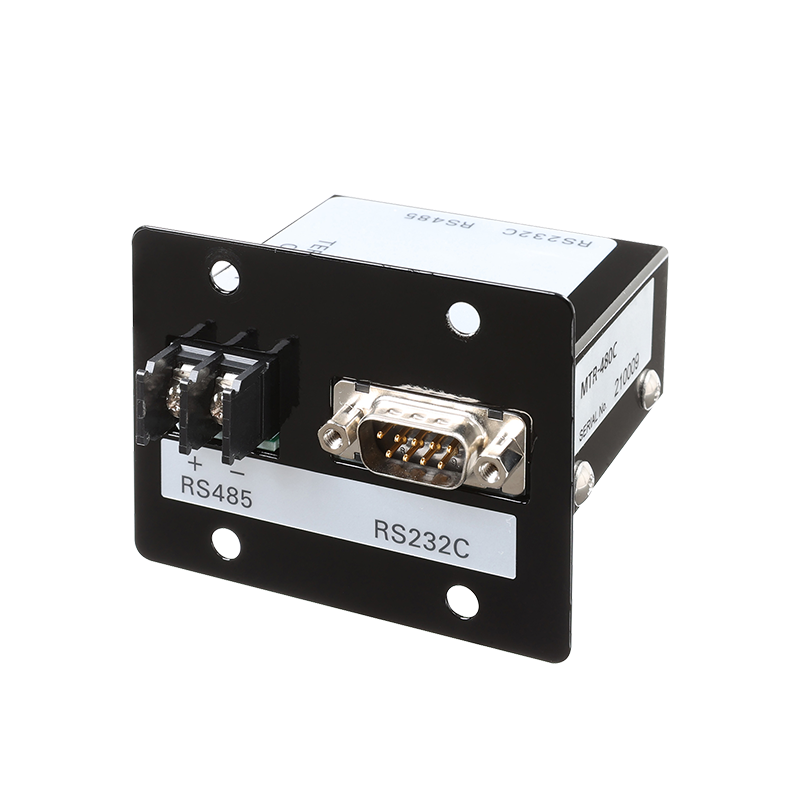

外観

仕様

Name Interface board
Model MTR-480
External dimensions W74 mm (2.9 in.) x D63 mm (2.5 in.) x H58 mm (2.3 in.)
Output terminal RS232C (not used)
  RS485; 2P screw terminal
Power source DC 5 V (supplied from the equipment)
Weight 0.2 kg (0.4 lbs)
Accessory RS485 cable (1), Interface board mounting screws (4)
